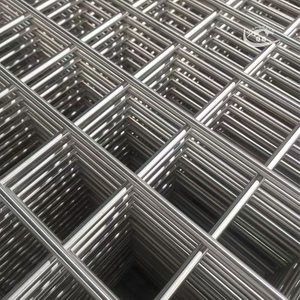

SL62 iron bar welded concrete steel mesh

Reinforcement mesh is also called road reinforcing mesh grid. Feature High tensile strength D500 Sturdy structure & simple process Specification F62 F72 F82 F92 F102 etc Dimension: 2.4x6m; 2.2x5.8m
Availability:
Quantity:

Product Description

 Reinforcing Mesh also known as steel concrete mesh,welded wire fabric,ribbed steel bars welded mesh and so on. Be made from cold reduced Wire or cold rolled ribbed bars(CRB550) ,
 It is in the same or different diameters of the vertical and horizontal steel bars , and has a rectangular or square apertures and is produced in flat sheets.



Application:

Slab on Grade reinforcement

Floor and Walls Systems

Topping Slabs

Architectural precast wall panels

Tilt-up construction wall systems


Specification Sheet

Ref  No.

Stand Unit

Longitudinal wire (mm)

Edge wire (mm)

Cross wire (mm)

Mass ( kg)

SL52 ( F52)

Sheet

4.77@200

4.77@100

4.77@200

21

SL62 ( F62)

Sheet

6@200

4.77@100

6@200

33

SL72 ( F72)

Sheet

6.75@200

4.77@100

6.75@200

41

SL82 ( F82)

Sheet

7.6@200

5.37@100

7.6@200

52

SL92 ( F92)

Sheet

8.6@200

6@100

8.6@200

66

SL102 ( F102)

Sheet

9.5@200

6.75@100

9.5@200

80


Project

工程图1       工程图2


工程图3      Reinforcement mesh- 工程图
