Cheap price welded mild steel metal wire mesh for concrete

Reinforcement mesh is also called road reinforcing mesh grid. Feature High tensile strength D500 Sturdy structure & simple process Specification F62 F72 F82 F92 F102 etc Dimension: 2.4x6m; 2.2x5.8m
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Product Description

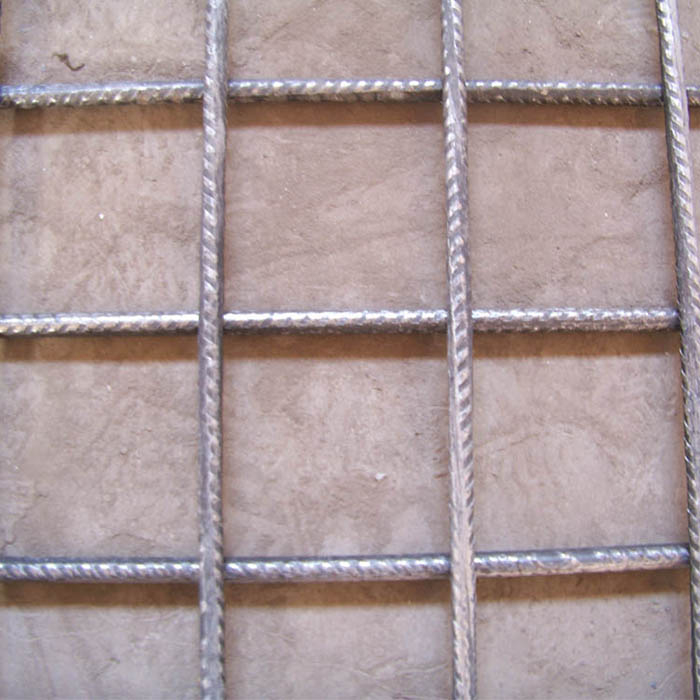

 Reinforcing Mesh also known as steel concrete mesh,welded wire fabric,ribbed steel bars welded mesh and so on. Be made from cold reduced Wire or cold rolled ribbed bars(CRB550) ,
 It is in the same or different diameters of the vertical and horizontal steel bars , and has a rectangular or square apertures and is produced in flat sheets.



Application:

Slab on Grade reinforcement

Floor and Walls Systems

Topping Slabs

Architectural precast wall panels

Tilt-up construction wall systems


Specification Sheet

Ref  No.

Stand Unit

Longitudinal wire (mm)

Edge wire (mm)

Cross wire (mm)

Mass ( kg)

SL52 ( F52)

Sheet

4.77@200

4.77@100

4.77@200

21

SL62 ( F62)

Sheet

6@200

4.77@100

6@200

33

SL72 ( F72)

Sheet

6.75@200

4.77@100

6.75@200

41

SL82 ( F82)

Sheet

7.6@200

5.37@100

7.6@200

52

SL92 ( F92)

Sheet

8.6@200

6@100

8.6@200

66

SL102 ( F102)

Sheet

9.5@200

6.75@100

9.5@200

80


Project

工程图1       工程图2


工程图3      Reinforcement mesh- 工程图
