SL82 Longitudinal Wires 7.6mm Edge Wires 5.37mm Reinforcing Wire Mesh Panel

SL82 longitudinal wires 7.6mm edge wires 5.37mm reinforcing wire mesh panel Used for Concrete Reinforcing Wire Mesh Panel is a multi-purpose steel reinforcing mesh, which is suitable for the use of more structural building slabs and footing. It consisted of a series of high-strength wires welded together to form a square or rectangular grids fabric.
usage:
Material:
Hole Size:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Concrete Reinforcing Wire Mesh Panel

  • Qiangguan

Product Description

SL82 longitudinal wires 7.6mm edge wires 5.37mm reinforcing wire mesh panel is a multi-purpose steel reinforcing mesh, which is suitable for the use of more structural building slabs and footing. It consisted of a series of high-strength wires welded together to form a square or rectangular grids fabric.


The application of Floor slab reinforcement welded wire mesh panel BRC Wire Mesh drawn deformed wires 6mm 8mm 10mm

1. Prefabricated cages
2. Precast building components
3. Retaining wall
4. Reinforcement of slab
5.  Precast products such as drainage, box culvert, RC U-drain, pipe culvert, and other precase concrete panels industries.


Specification

REINFORCING WIRE MESH SPECIFICATION
Reference
Products Code
Mesh Specification
Approx Mass Of 2.4M x 6M Sheets
Longitudinal Wires No. x Size (mm) @Pitch (mm)
Cross Wires
No. x Size (mm) @Pitch(mm)
Area Kg/M2
Sheet Kg
Rectangular Mesh (RL)
RL1218
25 x 11.9@100
30 x 7.6@200
10.5
157
RL1118
25 x 10.7@100
30 x 7.6@200
8.8
130
RL1018
25 x 9.5@100
30 x 7.6@200
7.3
109
RL918
25 x 8.6@100
30 x 7.6@200
6.3
93
RL818
25 x 7.6@100
30 x 7.6@200
5.3
79
RL718
25 x 6.75@100
30 x 7.6@200
4.6
67

Square Meshes (SL) With Edge Lapping Wires
SL102
10 x 9.5@200+4 x 6.75@100
30 x 9.5@200
5.6
80
SL92
10 x 8.6@200+4 x 6.0@100
30 x 8.6@200
4.6
66
SL82
10 x 7.6@200+4 x 5.37@100
30 x 7.6@200
3.6
52
SL72
10 x 6.75@200+4 x 4.77@100
30 x 6.75@200
2.8
41
SL62
10 x 6.0@200+4 x 4.24@100
30 x 6.0@200
2.2
33

Square Mesh (SL)
SL81
25 x 7.6@100
60 x 7.6@100
7.1
105


Details

Welded wire mesh panels

Welded wire mesh panels are strong and versatile, used for fencing, reinforcement, and securing areas. Made from welded steel wires, they offer durability and come in various sizes, making them easy to install for multiple applications.

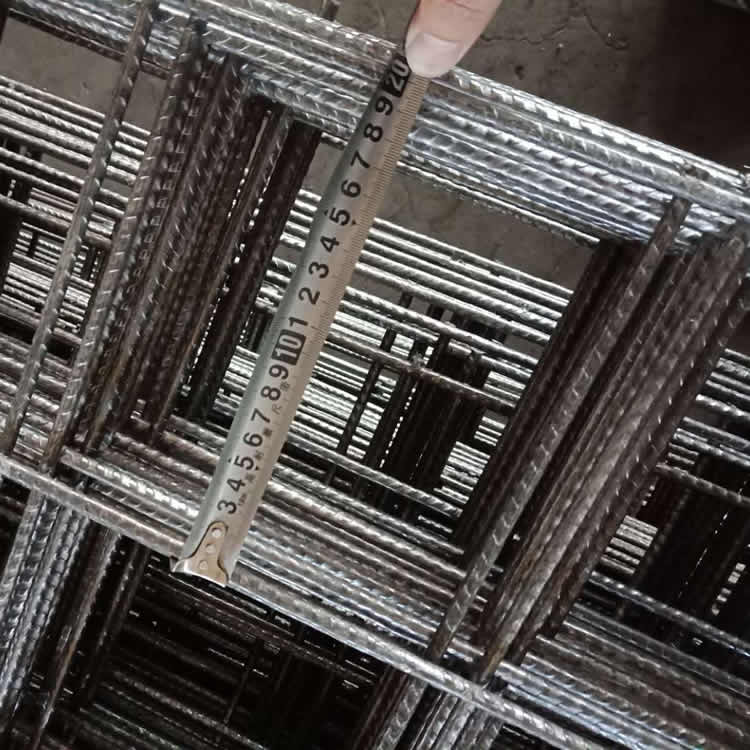

The following images provide detailed views of the quality of the welds and uniformity of the grid.

Reinforcing wire mesh
German standard DIN488 (SIZE:2150MMX5000MM)
Ref No.
Std Unit
Longitudinal Wires(mm)
Cross Wires(mm)
Pitch of wire(mm)
Mass(Kg)
Mass(Kg/m2)
Q131
Sheet
5
5
150 x 150
22.476
2.091
Q188
Sheet
6
6
150 x 150
32.401
3.014
Q221
Sheet
6.5/5.0
6.5
150 x 150
33.707
3.136
Q295
Sheet
7.5/5.5
7.5
150 x 150
44.245
4.116
Q378
Sheet
8.5/6
8.5
150 x 150
66.659
5.157
Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400mm)
Ref No.
Std Unit
Longitudinal Wires(mm)
Edge Wires(mm)
Cross Wires(mm)
Mass(Kg)
SL81 (F81)
Sheet
7.6 @ 100
7.60 @ 100
7.60 @ 100
105
SL102 (F102)
Sheet
9.5 @ 200
6.75 @ 100
9.50 @ 200
80
SL92 (F92)
Sheet
8.6 @ 200
6 @ 100
8.60 @ 200
66
SL82 (F82)
Sheet
7.6 @ 200
5.37 @ 100
7.60 @ 200
52
SL72 (F72)
Sheet
6.75@ 200
4.77 @ 100
6.75 @ 200
41
SL62 (F62)
Sheet
6 @ 200
4.77 @ 100
6 @ 200
33
SL52 (F52)
Sheet
4.77 @ 200
4.77 @ 100
4.77 @ 200
21
BRITISH STANDARD BS4483
Ref No.
Std Unit
Longitudinal Wires(mm)
Cross Wires(mm)
Pitch of wire(mm)
No. of sheet per ton
Mass(Kg/m2)
A393
Sheet
10
10
200 x 200
15
6.16
A252
Sheet
8
8
200 x 200
22
3.95
A193
Sheet
7
7
200 x 200
29
3.02
A142
Sheet
6
6
200 x 200
40
2.22
A98
Sheet
5
5
200 x 200
57
1.54
Company Profile

Qiangguan company's advantage:

1. Direct factory with more than 30 years of history.
2. High quality with a pretty competitive price.
3. Fast delivery.
4. With lots of certificates.
5. Timely and effective after service.

Contact us for for test certificate, quotation, and more information!


FAQ

How about Anping Qiangguan company?

Anping Qiangguan company is a direct manufacturer more than 30Years,we have rich experience of wire mesh fence products,and have quality control department, so please trust us,we will be your best choice !


What is the minimum orde quantity?
Usually, the minimum quantity is in a 20 Ft Container, for the price is much reasonable for customers, but if you really don't need so much, it can be negotiable. If it only because you don't trust the quality, we can send you sample first!

What is the lead time?
Usually, the lead time is within 20 days after we receipt of the prepayment, if you need products urgently, we will do our best to produce it ASAP, and shipping ASAP, to meet your requirement.


How to contact us?
You can click contact supplier and then send your requirements to us, we have a high quality sales team, we can help you get what you really want.
