Product Description

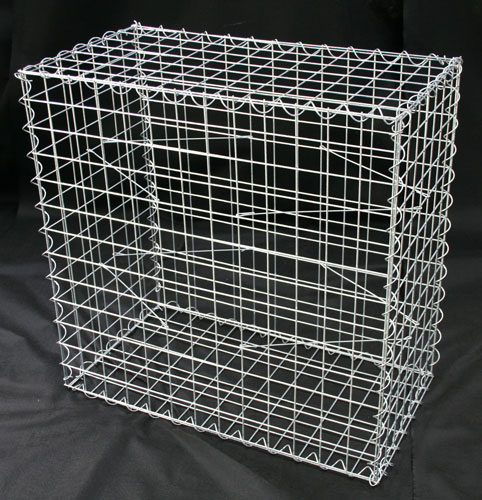

New Type Welded Gabion Fence Iron Wire Mesh
The theory of this type of gabion basket is similar to woven gabion box. A welded gabion unit is consisted of welded wire mesh panel, fixed together with helical spirals or “C” clips on the vertical edge.
On the surface of the quality low carbon steel wire, there is a layer of zinc or zinc aluminum alloy, which helps the gabion mesh have a strong anti-corrosion ability. Different color of plastic coating can present a variety of decorative effects to meet different customers’ multiple needs. The cross joints are very strong which can meet military standards. No maintenance required.
The purpose of these units is mainly landscaping of gardens or residential buildings. Bases on different grid hole, it is easier to find suitable quality stones surround the construction sites which could present different appearances.
Specification Sheet
SPECIFICATION LIST | |||
Wire thickness: 3.0mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm | |||
Square hole: 10 x 10 cm, 5 x 5 cm, 6 x 6 cm, 3 x 3 cm Rectangle hole: 3 x 5 cm, 5 x 10 cm | |||
Material options: Zinc, Zinc-Aluminium, Powder Coating | |||
Item NO. | Length (cm) | Thickness(cm) | Height(cm) |
QGWG-533 | 50 | 30 | 30 |
QGWG-535 | 50 | 30 | 50 |
QGWG-537 | 50 | 30 | 70 |
QGWG-5310 | 50 | 30 | 100 |
QGWG-1033 | 100 | 30 | 30 |
QGWG-1035 | 100 | 30 | 50 |
QGWG-1037 | 100 | 30 | 70 |
QGWG-10310 | 100 | 30 | 100 |
QGWG-553 | 50 | 50 | 30 |
QGWG-555 | 50 | 50 | 50 |
QGWG-557 | 50 | 50 | 70 |
QGWG-5510 | 50 | 50 | 100 |
QGWG-1053 | 100 | 50 | 30 |
QGWG-1055 | 100 | 50 | 50 |
QGWG-1057 | 100 | 50 | 70 |
QGWG-10510 | 100 | 50 | 100 |
QGWG-573 | 50 | 70 | 30 |
QGWG-575 | 50 | 70 | 50 |
QGWG-577 | 50 | 70 | 70 |
QGWG-5710 | 50 | 70 | 100 |
QGWG-1073 | 100 | 70 | 30 |
QGWG-5103 | 50 | 100 | 30 |
QGWG-5105 | 50 | 100 | 50 |
QGWG-5107 | 50 | 100 | 70 |
QGWG-51010 | 50 | 100 | 100 |
QGWG-10103 | 100 | 100 | 30 |
QGWG-10105 | 100 | 100 | 50 |
QGWG-10107 | 100 | 100 | 70 |
QGWG-101010 | 100 | 100 | 100 |
