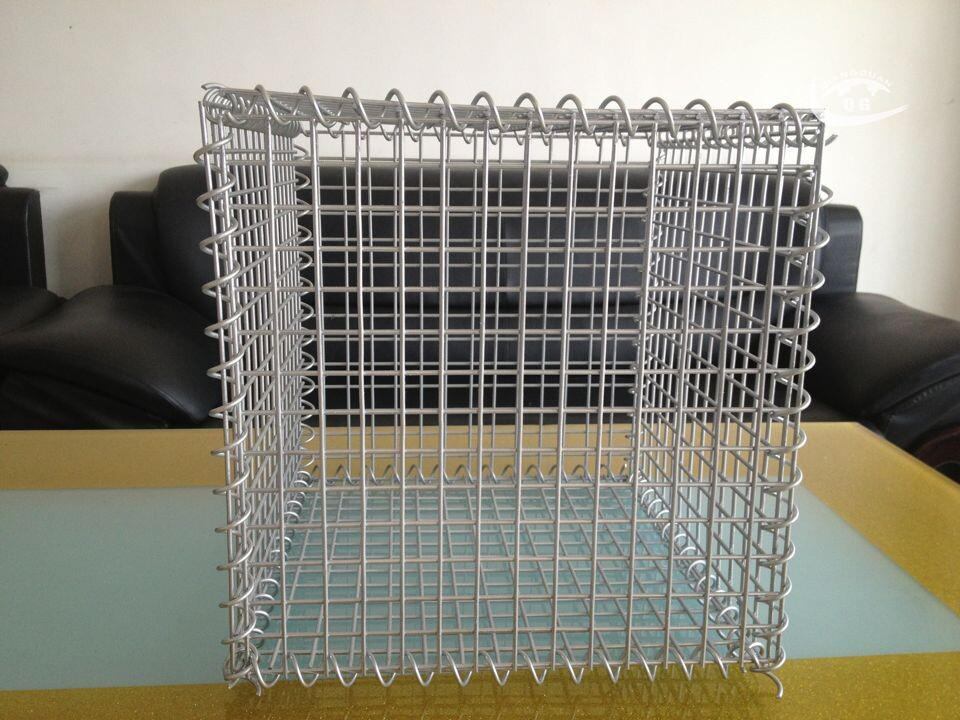

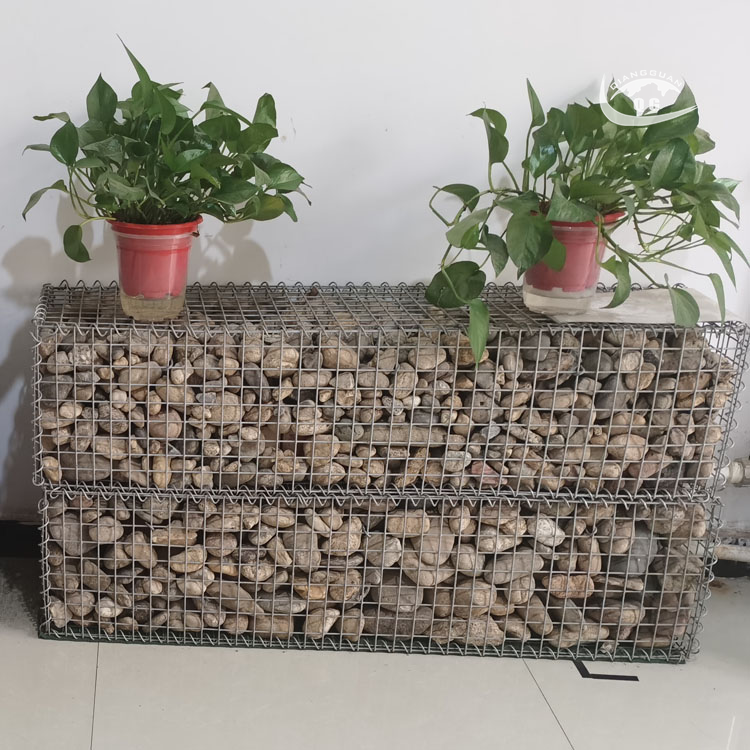

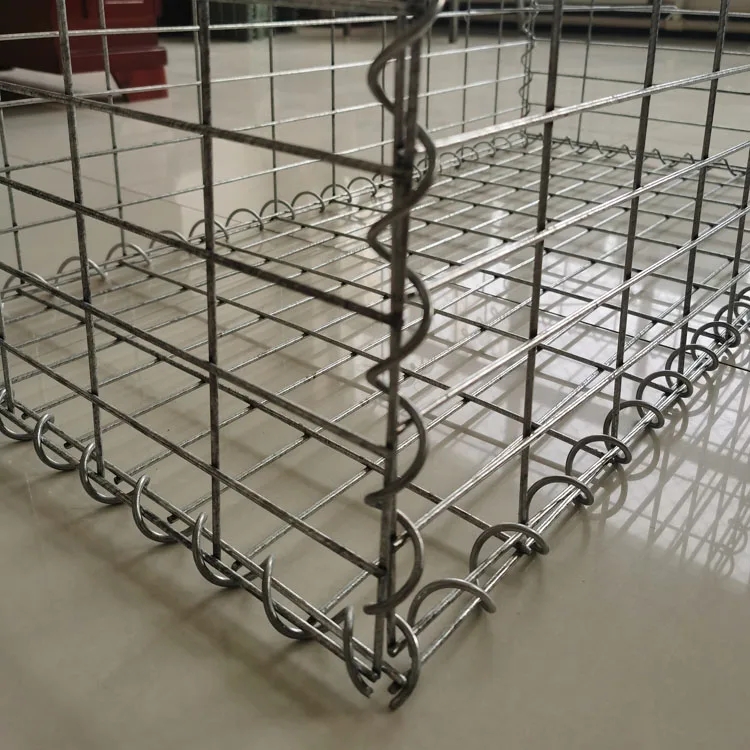

A welded gabion is a pre-made steel wire box filled with stones. It's stronger than traditional woven gabions and easier to install.
Key Features:

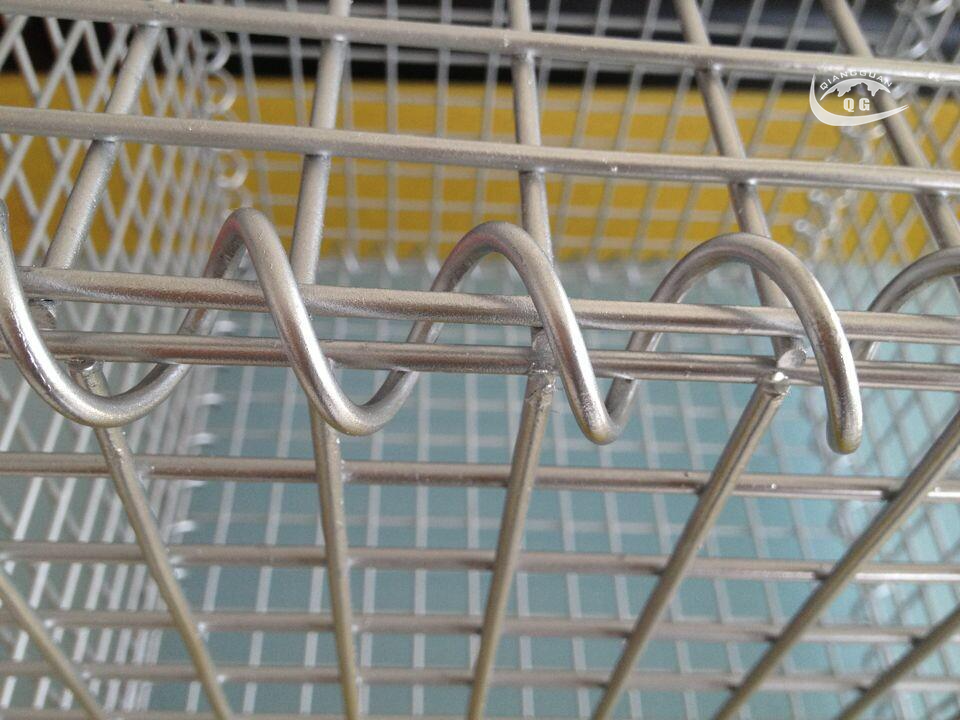

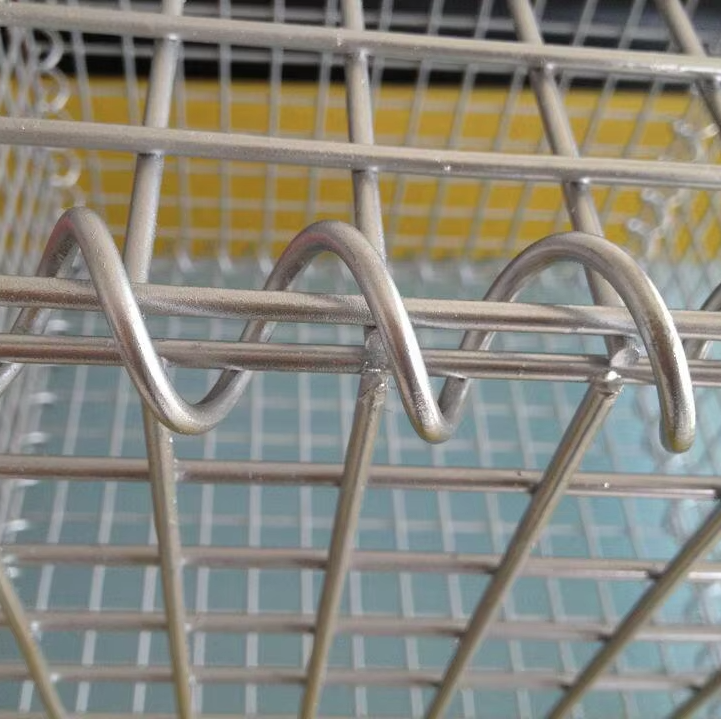

Made of welded steel mesh (won't unravel)
Galvanized or PVC-coated for long life
Quick assembly - just fill with rocks

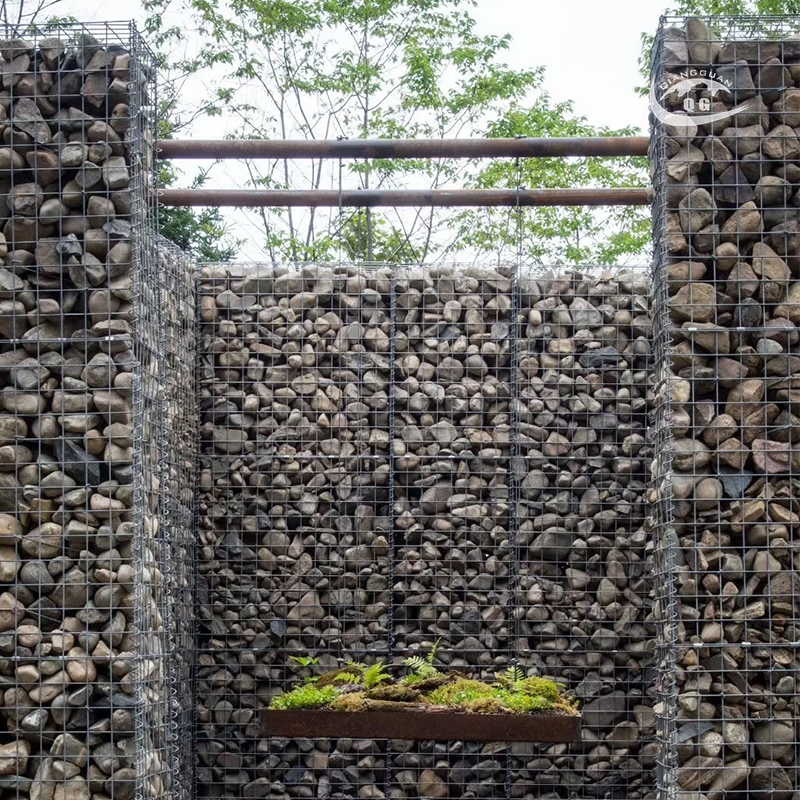

Perfect for walls, slopes and erosion control
Common Sizes:
1m×1m×1m, 2m×1m×1m
(Custom sizes available)
Need help? Contact us today!
| Quantity: | |
|---|---|
Product Description
1. Qiangguan company is the only main production gabion manufacturer in Anping, China, the famous Wire Mesh Land.
2. More than 30 years manufacturing experience, 17 years at Alibaba, Credit rating: AAA
3. Qiangguan company have the most advanced technology and productivity.
Specification Sheet
SPECIFICATION LIST | |||
Wire thickness: 3.0mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm | |||
Square hole: 10 x 10 cm, 5 x 5 cm, 6 x 6 cm, 3 x 3 cm Rectangle hole: 3 x 5 cm, 5 x 10 cm | |||
Material options: Zinc, Zinc-Aluminium, Powder Coating | |||
Item NO. | Length (cm) | Thickness(cm) | Height(cm) |
QGWG-533 | 50 | 30 | 30 |
QGWG-535 | 50 | 30 | 50 |
QGWG-537 | 50 | 30 | 70 |
QGWG-5310 | 50 | 30 | 100 |
QGWG-1033 | 100 | 30 | 30 |
QGWG-1035 | 100 | 30 | 50 |
QGWG-1037 | 100 | 30 | 70 |
QGWG-10310 | 100 | 30 | 100 |
QGWG-553 | 50 | 50 | 30 |
QGWG-555 | 50 | 50 | 50 |
QGWG-557 | 50 | 50 | 70 |
QGWG-5510 | 50 | 50 | 100 |
QGWG-1053 | 100 | 50 | 30 |
QGWG-1055 | 100 | 50 | 50 |
QGWG-1057 | 100 | 50 | 70 |
QGWG-10510 | 100 | 50 | 100 |
QGWG-573 | 50 | 70 | 30 |
QGWG-575 | 50 | 70 | 50 |
QGWG-577 | 50 | 70 | 70 |
QGWG-5710 | 50 | 70 | 100 |
QGWG-1073 | 100 | 70 | 30 |
QGWG-5103 | 50 | 100 | 30 |
QGWG-5105 | 50 | 100 | 50 |
QGWG-5107 | 50 | 100 | 70 |
QGWG-51010 | 50 | 100 | 100 |
QGWG-10103 | 100 | 100 | 30 |
QGWG-10105 | 100 | 100 | 50 |
QGWG-10107 | 100 | 100 | 70 |
QGWG-101010 | 100 | 100 | 100 |
Details
Welcome to contact us for test certificate, quotation, and more information!
