4x1x1m pvc coated gabion box for retaining wall

Gabion are made of heavily galvanized, double twisted, steel woven wire mesh.
Material
Galvanized, pvc coated
Popular sizes
2.7/ 3.4/ 2.2mm 8x10cm 2x1x1m
2.2/ 2.7/ 2.2mm 6x8cm 2x1x0.3m
Connection method
Lacing wire
C ring
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Product Description

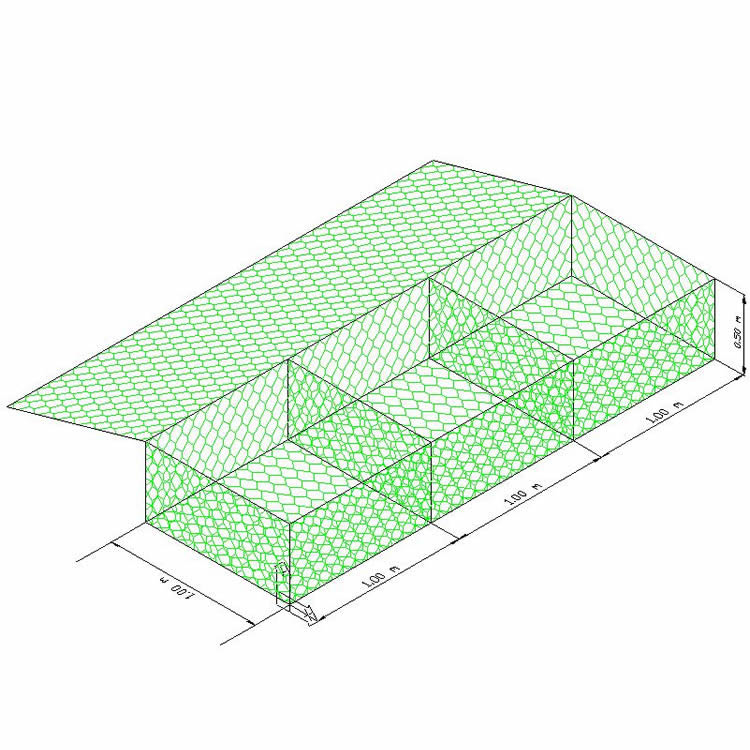

Gabion box is an element in the form of blocks made of wire mesh netting of twisted hexagonal opening or welded square or rectangular openings, which is filled with natural stone for river, hill protection or construction.



2 types of fabrication:

Double twist

Triple twist



2 methods of trimming:

Simple closed edge/ three times trimming

Fully closed edge/ five times trimming


Specification Sheet

Mesh size (mm)

Wire diameter (mm)

PVC coated diameter ( mm)

Dimension (m)

60x80

2.0- 2.8

2.0/ 3.0-2.5/ 3.5

1x1x1
1.5x1x1
2x1x1
3x1x1
4x1x1
2x1x0.5
3x1x0.5
4x1x0.5 etc

80x100

2.0- 3.2

2.0/ 3.0-2.8/ 3.8

100x120

2.0- 3.4

2.0/ 3.0-2.8/ 3.8

120x150

2.0- 4.0

2.0/ 3.0-3.0/ 4.0



Length ( m)

Width ( m)

Height (m)

Mesh type (mm)

3

2

0.17- 0.23- 0.30

60x 80

4

2

0.17- 0.23- 0.30

60x 80

5

2

0.17- 0.23- 0.30

60x 80

6

2

0.17- 0.23- 0.30

60x 80


Project

工程图1       工程图2


工程图3
