Product Description

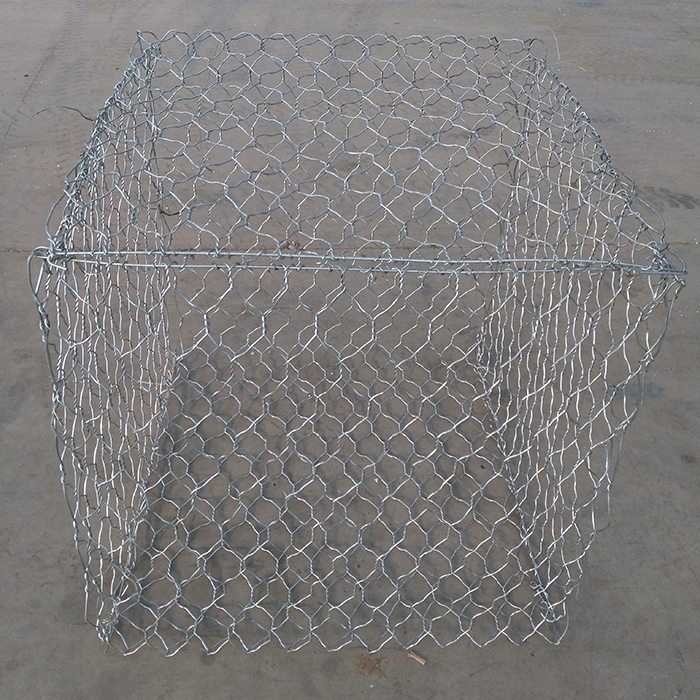

Gabion wire mesh is an element in the form of blocks made of wire mesh netting of twisted hexagonal opening or welded square or rectangular openings, which is filled with natural stone for river, hill protection or construction.
2 types of fabrication:
Double twist
Triple twist
2 methods of trimming:
Simple closed edge/ three times trimming
Fully closed edge/ five times trimming
Specification Sheet
Mesh size (mm) | Wire diameter (mm) | PVC coated diameter ( mm) | Dimension (m) |
60x80 | 2.0- 2.8 | 2.0/ 3.0-2.5/ 3.5 | 1x1x1 |
80x100 | 2.0- 3.2 | 2.0/ 3.0-2.8/ 3.8 | |
100x120 | 2.0- 3.4 | 2.0/ 3.0-2.8/ 3.8 | |
120x150 | 2.0- 4.0 | 2.0/ 3.0-3.0/ 4.0 |
Length ( m) | Width ( m) | Height (m) | Mesh type (mm) |
3 | 2 | 0.17- 0.23- 0.30 | 60x 80 |
4 | 2 | 0.17- 0.23- 0.30 | 60x 80 |
5 | 2 | 0.17- 0.23- 0.30 | 60x 80 |
6 | 2 | 0.17- 0.23- 0.30 | 60x 80 |
