Welded gabion basket wire mesh rock wall

Outdoor garden decoration Gabion wall stone basket
- Sturdy and durable welded mesh panel
- Corrosion resistance by galvanized, zinc-aluminum or plastic coating
- Ease of handling and transportation
- Rapid of construction

Nominal Size
Small Box
- 3mm thickness with 5cm hole 30x30x30cm
Medium Box
- 4mm thickness with 5cm hole 100x100x30cm
Large Box (Continuous connected cage)
- 100x100x30cm 3-6 cells
- Folded packaging for easy transportation and installation
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Product Description

Welded Gabion basket with welded mesh structure

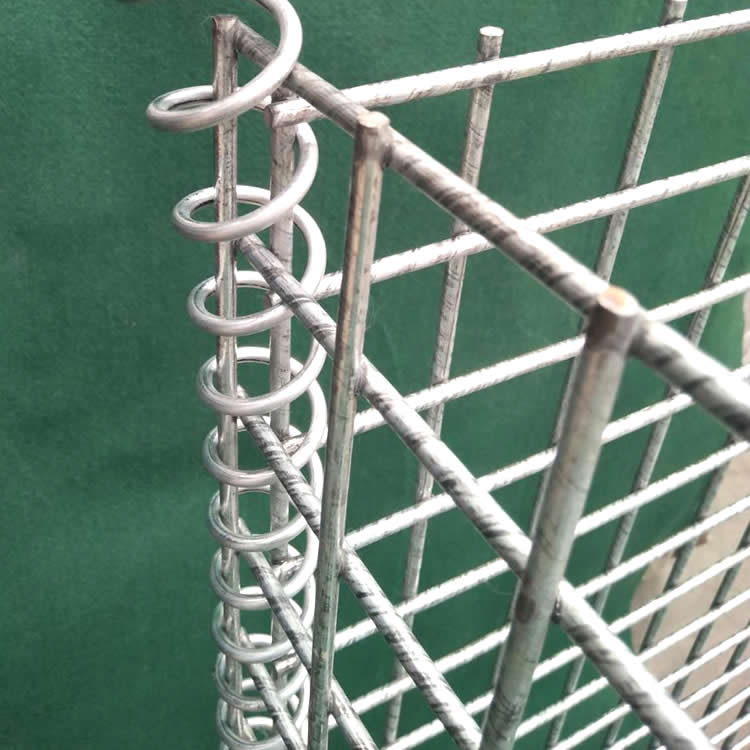

The theory of this type of welded gabion basket is similar to woven gabion box. A welded gabion unit is consisted of welded wire mesh panel, fixed together with helical spirals or “C” clips on the vertical edge.



On the surface of the quality low carbon steel wire, there is a layer of zinc or zinc aluminum alloy, which helps the gabion mesh have a strong anti-corrosion ability. Different color of plastic coating can present a variety of decorative effects to meet different customers’ multiple needs. The cross joints are very strong which can meet military standards. No maintenance required.

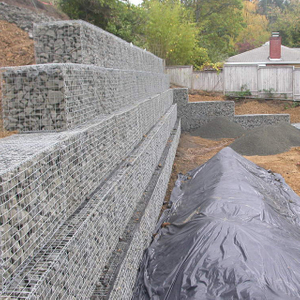

The purpose of these units is mainly landscaping of gardens or residential buildings. Bases on different grid hole, it is easier to find suitable quality stones surround the construction sites which could present different appearances.


Specification Sheet

SPECIFICATION LIST

Wire thickness: 3.0mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm

Square hole: 10 x 10 cm, 5 x 5 cm, 6 x 6 cm, 3 x 3 cm

Rectangle hole: 3 x 5 cm, 5 x 10 cm

Material options: Zinc, Zinc-Aluminium, Powder Coating

Item NO.

Length (cm)

Thickness(cm)

Height(cm)

QGWG-533

50

30

30

QGWG-535

50

30

50

QGWG-537

50

30

70

QGWG-5310

50

30

100

QGWG-1033

100

30

30

QGWG-1035

100

30

50

QGWG-1037

100

30

70

QGWG-10310

100

30

100

QGWG-553

50

50

30

QGWG-555

50

50

50

QGWG-557

50

50

70

QGWG-5510

50

50

100

QGWG-1053

100

50

30

QGWG-1055

100

50

50

QGWG-1057

100

50

70

QGWG-10510

100

50

100

QGWG-573

50

70

30

QGWG-575

50

70

50

QGWG-577

50

70

70

QGWG-5710

50

70

100

QGWG-1073

100

70

30

QGWG-5103

50

100

30

QGWG-5105

50

100

50

QGWG-5107

50

100

70

QGWG-51010

50

100

100

QGWG-10103

100

100

30

QGWG-10105

100

100

50

QGWG-10107

100

100

70

QGWG-101010

100

100

100
