BTO22, CBT60, CBT65
QIANGGUAN
QG-001
Product Description

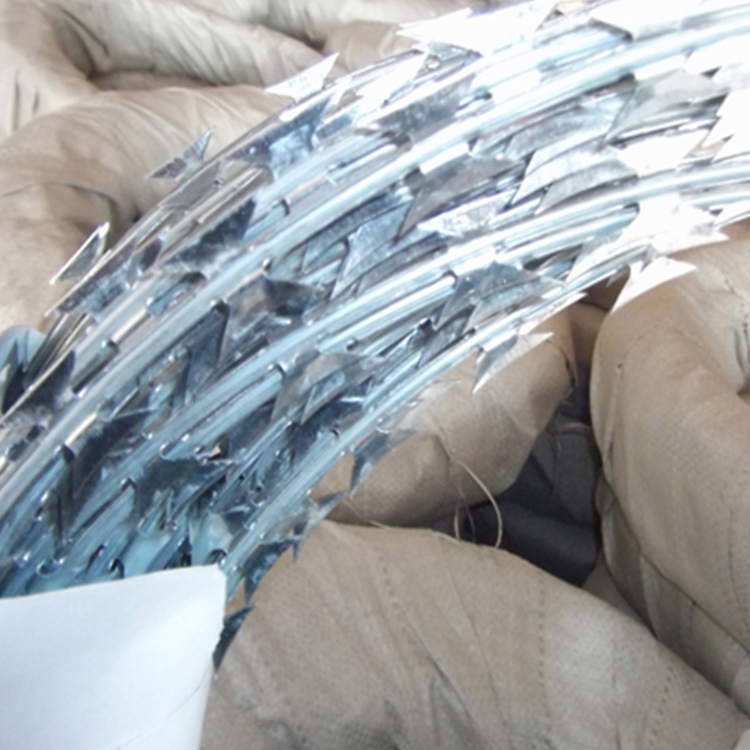

Concertina wire includes flat concertina wire and concertina wire coils. It is widely used in fencing with chain link fence for protection and security.
Concertina wire Systems
A standard Concertina wire system has a core wire diameter of 2.5 mm and consists of a continuous mild steel strip that is enclosed with sharp blades.
All coils to be clipped or welded together, and then form a stable and frightening structure.
Surface coating
Concertina wire is available in 3 options:
• Galvanized wire with galvanized blades
• Galvanized wire with stainless steel blades
• Stainless steel wire with stainless steel blades
Accessories (If require)
• Clips
• Gloves
• Pliers
• Ground hooks
Specification Sheet
Code | Blade profiles | Blade thickness | Core wire dia. | Blade length | Blade width | Blade space |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 | |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 | |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 | |
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Coil diameter (mm) | Spiral turns per coil | Clips | Recommended stretch length (m) |
200 | 33 | - | 6 |
300 | 33 | - | 10 |
450 | 33 | - | 15 |
600 | 33 | - | 15 |
750 | 33 | - | 15 |
900 | 33 | - | 15 |
Coil diameter (mm) | Spiral turns per coil | Clips per coil | Recommended stretch length (m) |
300 | 33 | 3 | 4 |
450 | 54 | 3 | 8 – 10 |
610 | 54 | 3 | 10 – 12 |
730 | 54 | 3 | 15 – 20 |
730 | 54 | 5 | 10 – 12 |
800 | 55/56 | 5 | 11 – 13 |
900 | 56 | 5 | 13 – 15 |
980 | 55/56 | 5 | 10 – 15 |
980 | 55/56 | 7 | 5 – 8 |
