BTO22 blade type galvanized concertina razor wire for protection

Extra Anti-climb Protection Topped on chain link fence, welded mesh fence, wall or directly place on the ground. Recommend models - Short blade: BTO-10 10 mm barb length 26 mm barb distance - Medium blade: BTO-22 22 mm barb length 34 mm barb distance - Long blade: CBT-65 65 mm barb length 100 mm barb distance
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • BTO22, CBT60, CBT65

  • QIANGGUAN

  • QG-001

Product Description

Galvanized concertina razor wire specification: thickness: 0.50mm +/- 0.05mm, Wire diameter: 2.5mm +/- 0.05mm, bars length: 22mm +/- 1mm, Barb width: 15mm + / - 1mm.

Concertina wire Systems

A standard Concertina wire system has a core wire diameter of 2.5 mm and consists of a continuous mild steel strip that is enclosed with sharp blades.

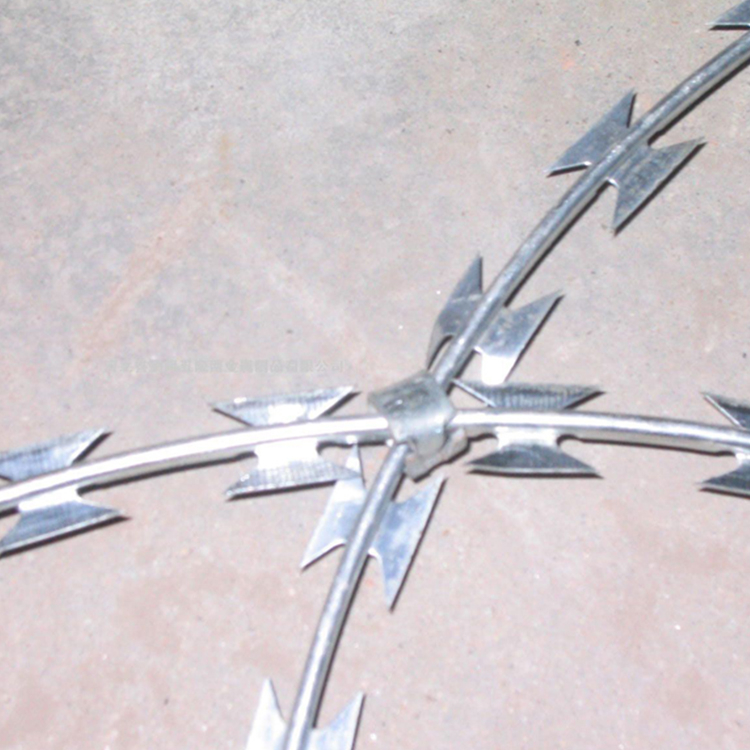

All coils to be clipped or welded together, and then form a stable and frightening structure.


Surface coating

Concertina wire is available in 3 options:

• Galvanized wire with galvanized blades

• Galvanized wire with stainless steel blades

• Stainless steel wire with stainless steel blades


Accessories (If require)

• Clips

• Gloves

• Pliers

• Ground hooks



Specification Sheet


Code

Blade profiles

Blade thickness

Core wire dia.

Blade length

Blade width

Blade space

BTO-10
Short

0.5±0.05

2.5±0.1

10±1

13±1

26±1

BTO-12

0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-18

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22
Medium

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-28

0.5±0.05

2.5

28

15

45±1

BTO-30

0.5±0.05

2.5

30

18

45±1

CBT-60

0.6±0.05

2.5±0.1

60±2

32±1

100±2

CBT-65
Long

0.6±0.05

2.5±0.1

65±2

21±1

100±2


Coil diameter (mm)

Spiral turns per coil

Clips

Recommended stretch length (m)

200

33

-

6

300

33

-

10

450

33

-

15

600

33

-

15

750

33

-

15

900

33

-

15


Coil diameter (mm)

Spiral turns per coil

Clips per coil

Recommended stretch length (m)

300

33

3

4

450

54

3

8  – 10

610

54

3

10  – 12

730

54

3

15 – 20

730

54

5

10  – 12

800

55/56

5

11 – 13

900

56

5

13 – 15

980

55/56

5

10 – 15

980

55/56

7

5  – 8

Project
