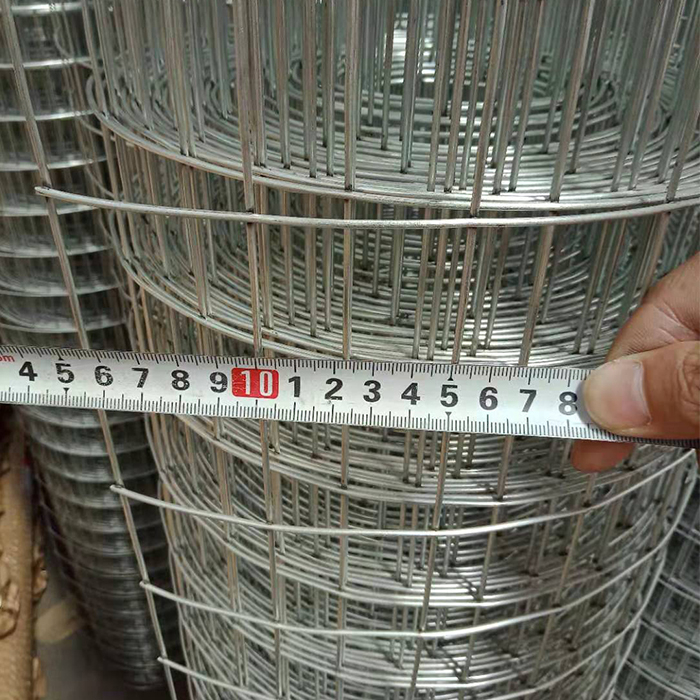

100ft 1/4 mesh 23 gauge galvanized hardware cloth rabbit wire mesh

Welded Wire Mesh Also called welded wire fabric or weld mesh, is a welded prefabricated joined grid which is consisted by vertical wires with accurate spacing welded to cross wires at the required spacing. Material - Low carbon steel wire - Stainless steel wire Surface coating - Electric galvanization - Hot dipped galvanization GBW - Hot dipped galvanization GAW - Plastic coating
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Product Description

Welded Mesh


All these meshes are made from galvanized wire or galvanized/PVC coating after welding.

Our range of galvanized welded mesh is the perfect choice for outdoor fencing applications. The galvanized finish protects the mesh from rusting in all weather conditions.


Lightweight 16 gauge: Fencing for small dogs, aviaries for birds of prey and temporary garden fence.
Medium weight 14 gauge: Stop the fox and prevent the chicken from running away and fencing for small or medium dogs.
Heavy weight 12 gauge: Strong mesh. Ideal for dog runs for medium/large dogs and boundary fences.
Extra Heavy weight 10 gauge: Very strong mesh for boundaries, large-dog enclosures and security fencing.



We offer the following hole sizes in galvanized/PVC coated welded wire mesh:

6mm x 6mm hole: The best choice for rodent protection.
13mm x 13mm hole: Used for bird protection and is the most popular hole size for fruit cages.
13mm x 25mm hole: Bird protection and for small animal enclosures.
19mm x 19mm hole: Rat and squirrel protection.
25mm x 25mm hole: Fox protection and cat enclosures.
50mm x 50mm hole: Fox protection, dog enclosures, and general fencing needs.



The welded wire fabric is a metal wire screen made up low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in many areas, such as livestock farming, decoration, garden landscaping, etc..

Welded wire mesh panel with thicker diameter round wire or steel rebar  (BRC Mesh) is used in construction for concrete reinforcement.


Specification Sheet


Welded Mesh - In Rolls

Technical Data Sheet (Galvanized)

Raw Material: Low carbon steel wire Q195 accord with GB/T 701-2008

Hole

Wire Diameter

Width: 0.5-2.5m

Inch

mm

BWG

mm

Nominal width: 3’, 4’, 5’, 6’


Nominal length: 10m, 15m, 20m, 30m










1/4"

6mm

24~22

0.56~0.71

3/8"

10.6mm

22~19

0.71~1.07

1/2"

13mm

23~16

0.64~1.65

5/8"

16mm

21~18

0.81~1.25

3/4"

19.1mm

21~16

0.81~1.65

1" x 1/2"

25.4mm x 12.7mm

21~16

0.81~1.65

1-1/2"

38mm

19~14

1.07~2.11

1" x 2"

25.4mm x 50.8mm

16~14

1.65~2.11

2"

50.8mm

16~12

1.65~2.77


PVC Coated Welded Mesh

Technical Data Sheet (PVC Coated)

Raw Material: Low carbon steel wire Q195 accord with GB/T 701-2008

Mesh

Wire Diameter

Width: 0.5-2.5m
Nominal width: 3', 4', 5', 6'
Nominal length: 10m, 15m, 20m, 30m









Inch

mm

mm

4" * 2"

100*50

2.0mm/2.6mm

3" * 2"

75*50

1.9mm/2.5mm

2" * 2"

50x50

1.9mm/2.5mm

2" * 1"

50x25

1.9mm/2.5mm

1" * 1"

25x25

1.0mm/1.6mm

3/4"

19x19

0.8mm/1.2mm

1/2"

13x13

0.5mm/0.8mm


Welded Mesh - In Panel

Technical Data Sheet (Welded Mesh Panel BRC)

Opening

Wire Diameter


Inch

mm

1"*1"

25mm * 25mm

2.5, 3.2, 4.0mm

2"*2"

50mm * 50mm

2.5, 3.2, 4.0, 6.0mm

4"*4"

100mm * 100mm

3.0, 4.0, 6.0mm

Nominal length: 2.4m or 3.0m;

Width: 1.0m, 1.2m, 2.0m
