Product Description

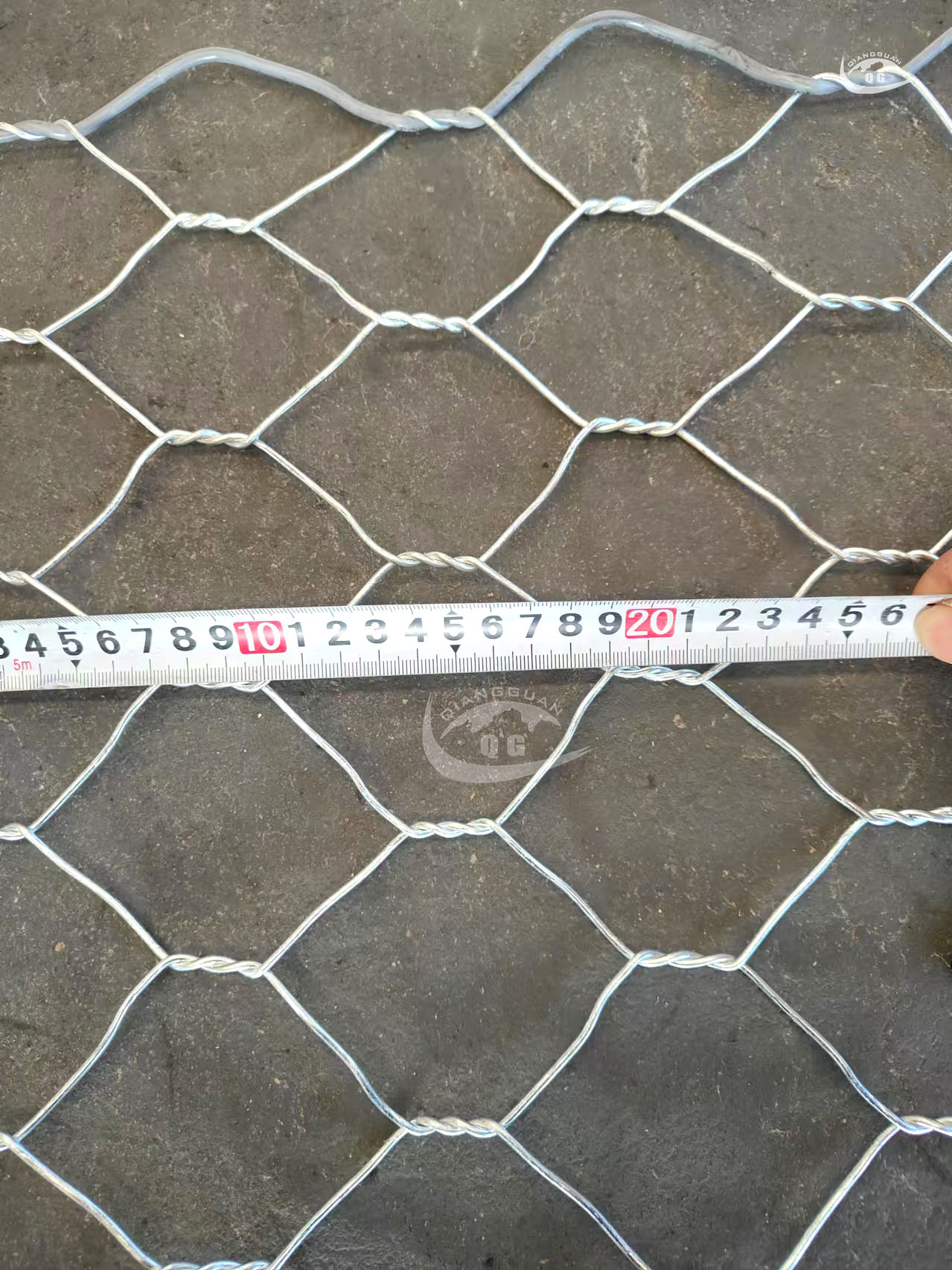

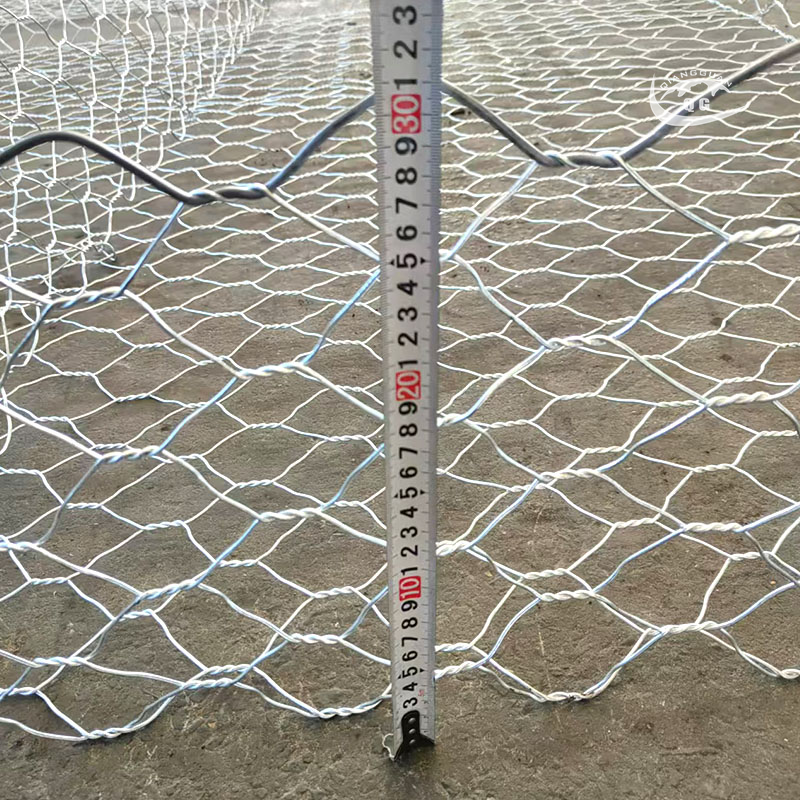

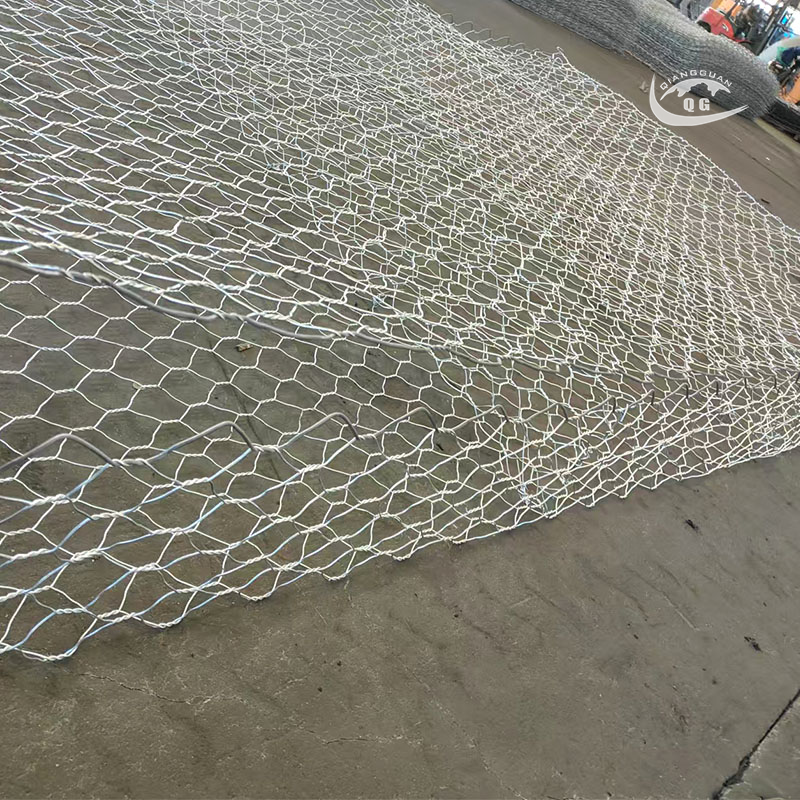

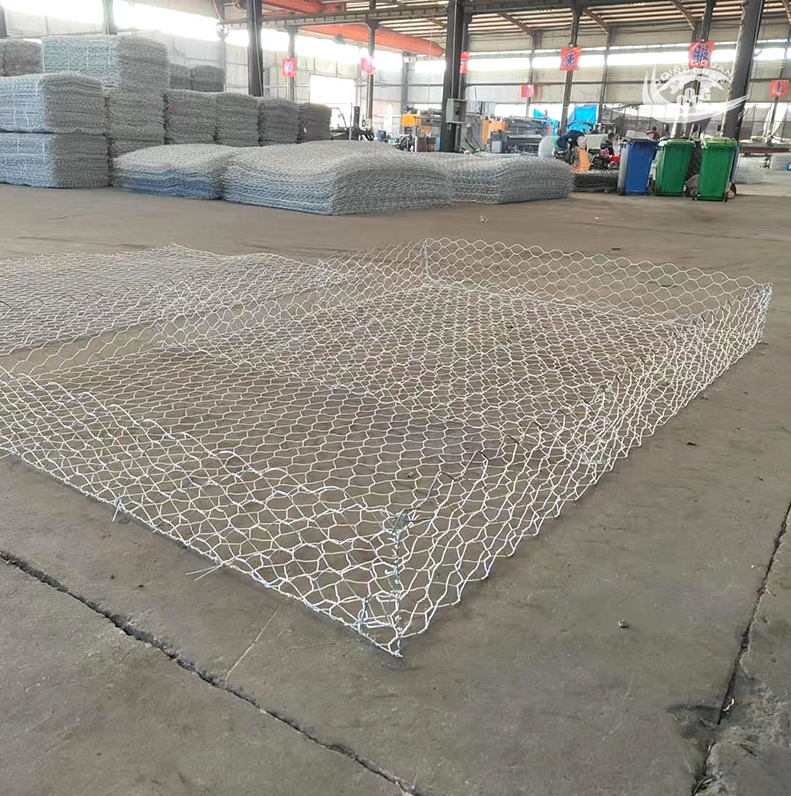

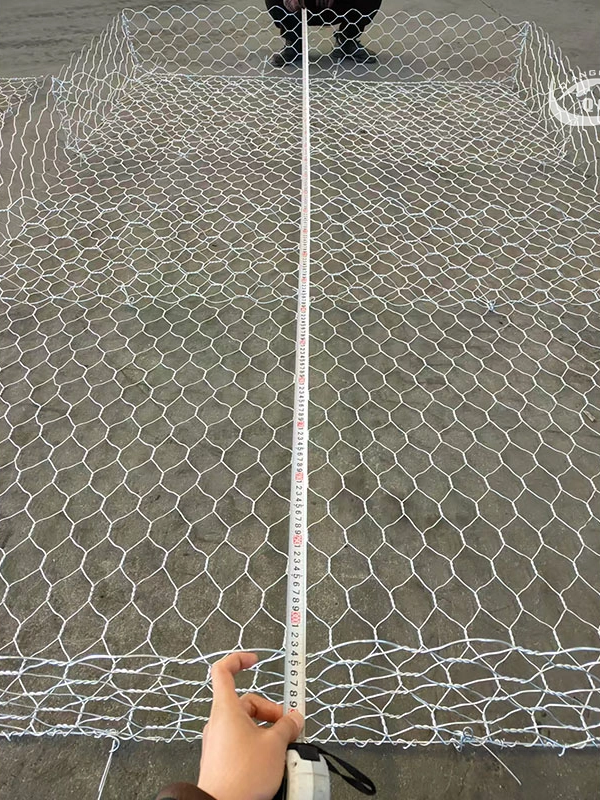

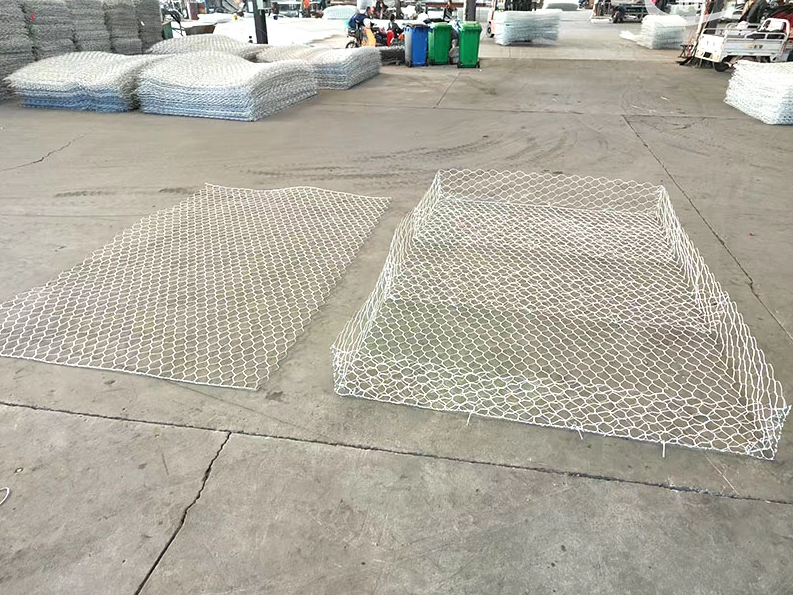

Gabion basket is an element in the form of blocks made of wire mesh netting of twisted hexagonal opening or welded square or rectangular openings, which is filled with natural stone for river, hill protection or construction.
2 types of fabrication: Double twist，Triple twist
2 methods of trimming: Simple closed edge/ three times trimming，Fully closed edge/ five times trimming
Specification Sheet
Mesh size (mm) | Wire diameter (mm) | PVC coated diameter ( mm) | Dimension (m) |
60x80 | 2.0- 2.8 | 2.0/ 3.0-2.5/ 3.5 | 1x1x1 |
80x100 | 2.0- 3.2 | 2.0/ 3.0-2.8/ 3.8 | |
100x120 | 2.0- 3.4 | 2.0/ 3.0-2.8/ 3.8 | |
120x150 | 2.0- 4.0 | 2.0/ 3.0-3.0/ 4.0 |
Length ( m) | Width ( m) | Height (m) | Mesh type (mm) |
3 | 2 | 0.17- 0.23- 0.30 | 60x 80 |
4 | 2 | 0.17- 0.23- 0.30 | 60x 80 |
5 | 2 | 0.17- 0.23- 0.30 | 60x 80 |
6 | 2 | 0.17- 0.23- 0.30 | 60x 80 |
Project
Welcome to contact us for test certificate, quotation, and more information!
