High quality army wall MIL hesco bastion flood barrier price
You are here: Home » Products » Defensive barrier » High quality army wall MIL hesco bastion flood barrier price

High quality army wall MIL hesco bastion flood barrier price

The Defensive Barrier used for flood control and military fortifications. Main composition Spiral hinged corners Welded mesh frame Non- woven geotextile liner Geotextile Weight: 200- 400g/ m2 Color: sand, green, gray etc
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Product Description

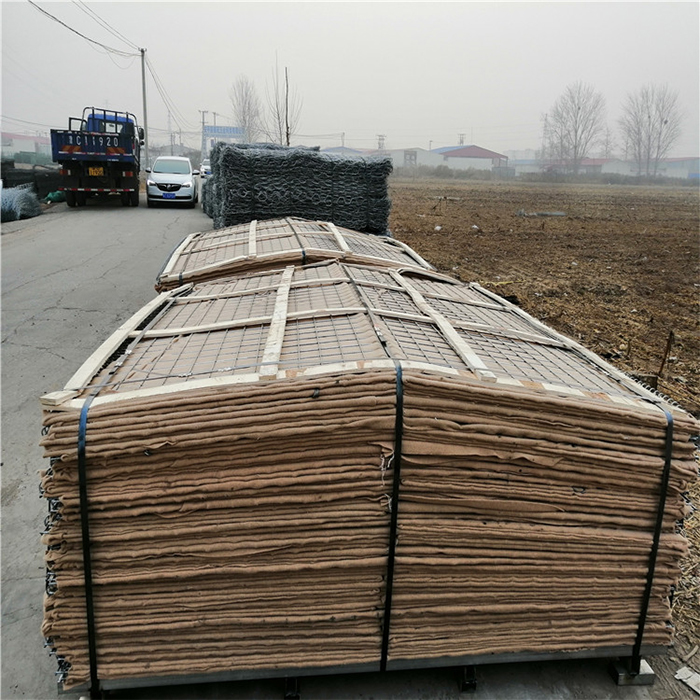

The defensive barrier container unit is a multicellular wall system manufactured from welded mesh panel and joined with vertical,helical coil joints. The container MIL units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile. Defensive barrier can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.



Galvanized coated welded mesh frame

Highly durable construction

Ideal for containing large amounts of the heavy fill material that gives the system its strength



Non- woven geotextile liner

Heavy duty non- woven polypropylene

Color: beige, green, white etc


Specification Sheet



Specification Sheet

Item No.

Height

Width

Length

Cells

QG MIL 1

4'6" (1.37m)

3'6" (1.06m)

32'9" (10m)

5+4 cells

QG MIL 2

2' (0.61m)

2' (0.61m)

4' (1.22m)

2 cells

QG MIL 3

3'3" (1.00m)

3'3" (1.00m)

32'9" (10m)

5+5 cells

QG MIL 4

3'3" (1.00m)

5' (1.52m)

32'9" (10m)

5+5 cells

QG MIL 5

2' (0.61m)

2' (0.61m)

10' (3.05m)

5 cells

QG MIL 6

5'6" (1.68m)

2' (0.61m)

10' (3.05m)

5 cells

QG MIL 7

7'3" (2.21m)

7' (2.13m)

91' (27.74m)

5+4+4 cells

QG MIL 8

4'6" (1.37m)

4' (1.22m)

32'9" (10m)

5+4 cells

QG MIL 9

3'3" (1.00m)

2'6" (0.76m)

30' (9.14m)

6+6 cells

QG MIL 10

7'3" (2.21m)

5' (1.52m)

100' (30.5m)

5+5+5+5 cells

QG MIL 11

4' (1.22m)

12" (0.30m)

4' (1.22m)

4 cells

QG MIL 12

7' (2.13m)

3'6" (1.06m)

108' (33m)

5+5+5+5+5+5 cells

QG MIL 19

9' (2.74m)

3'6" (1.06m)

10'5" (3.18m)

6 cells


Project

工程图1       工程图2


工程图3
