Custom Galvanized Welded Wire Mesh Panel for Fencing and Reinforcement
Welded Wire Mesh Also called welded wire fabric or weld mesh, is a welded prefabricated joined grid which is consisted by vertical wires with accurate spacing welded to cross wires at the required spacing. Material - Low carbon steel wire - Stainless steel wire Surface coating - Electric galvanization - Hot dipped galvanization GBW - Hot dipped galvanization GAW - Plastic coating
low carbon iron wire ,stainless steel wire,galvanized wire,PVC coated wire.
Welded Wire Mesh Welding style
Hot dipped galvanized after or before welding Electro galvanized after or before welding
Weaving and characteristics
Hot dipped galvanizing after welding Welding with hot dipped galvanized iron wire Electric galvanizing after waelding Welding with electric galvanized iron wire PVC coated welded wire mesh

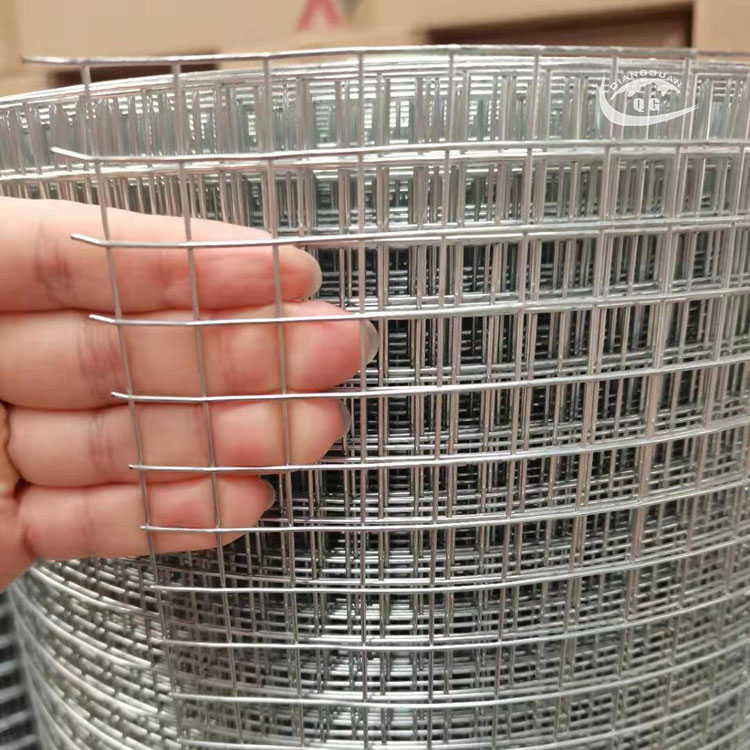

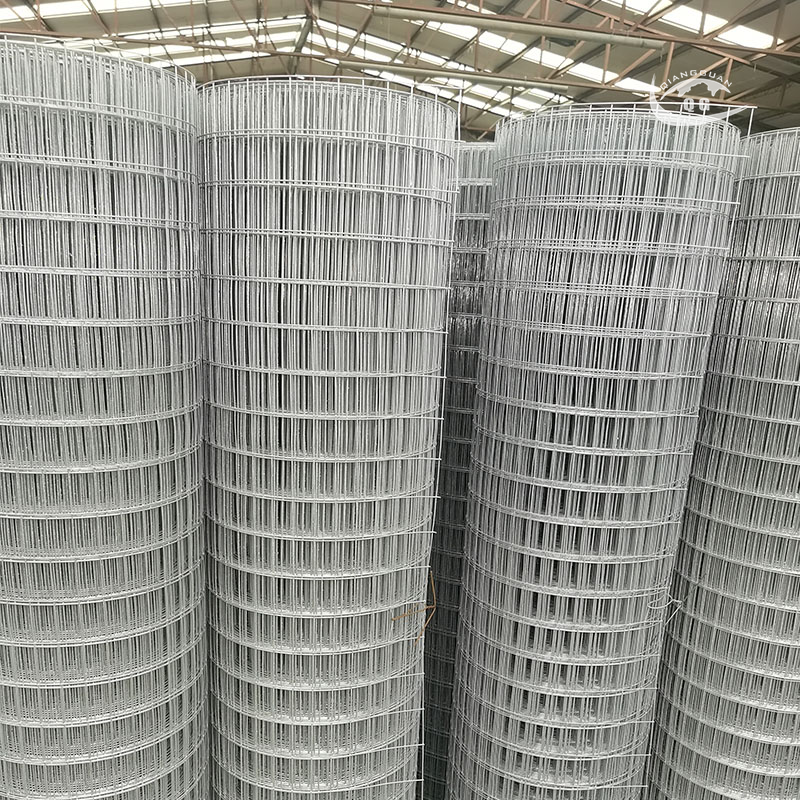

Welded Wire Mesh

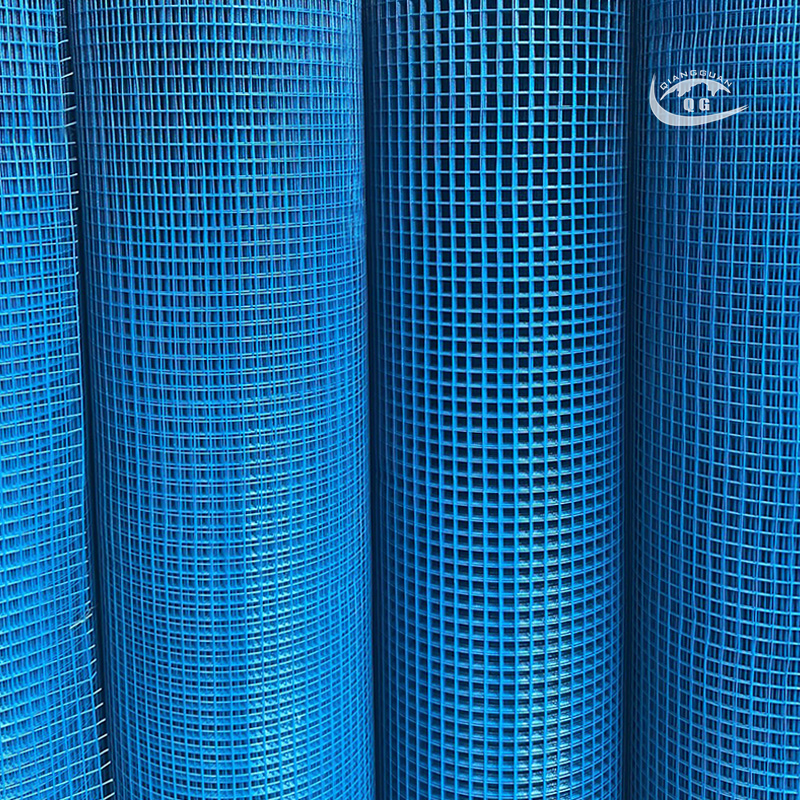

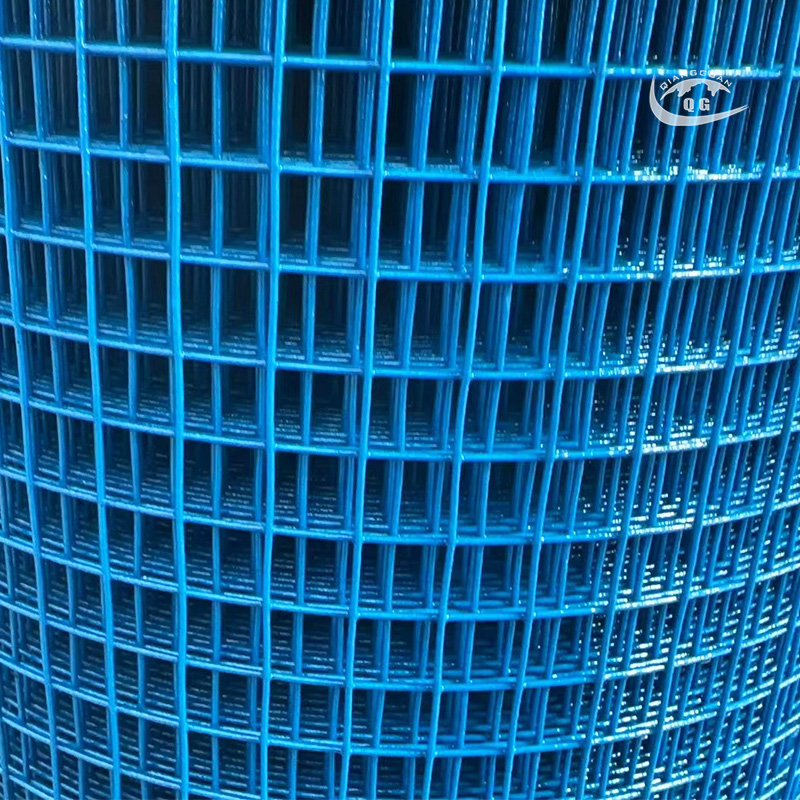

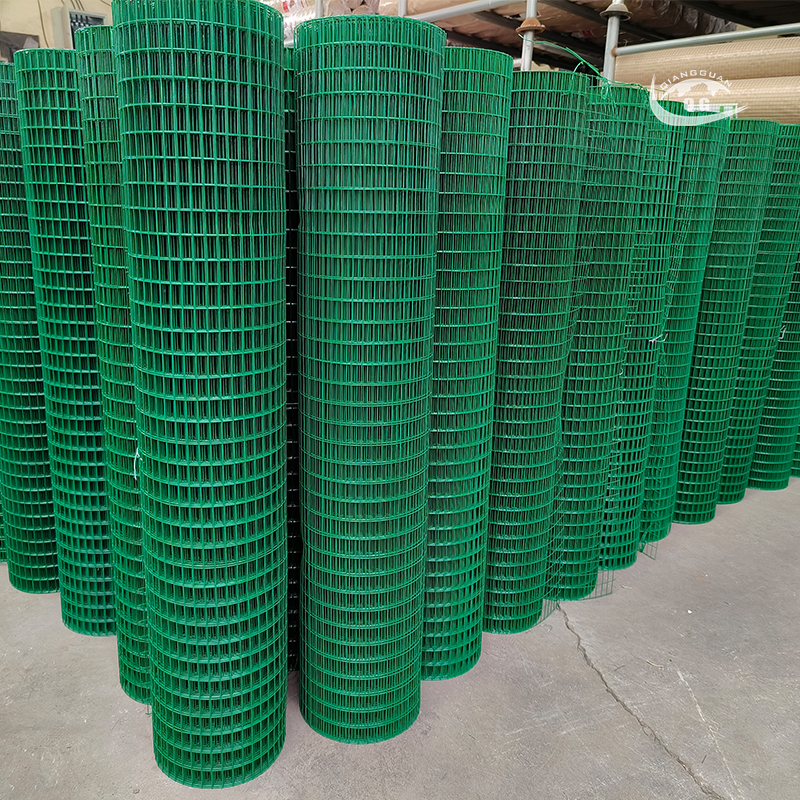

PVC Coated Welded Mesh
Specification
Welded Wire Mesh
Opening (In inch)
In metric unit(mm)
Wire Diameter(BWG)
1/4" x 1/4"
6.4mm x 6.4mm
22,23,24
3/8" x 3/8"
10.6mm x 10.6mm
19,20,21,22
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21,22,23
5/8" x 5/8"
16mm x 16mm
18,19,20,21
3/4" x 3/4"
19.1mm x 19.1mm
16,17,18,19,20,21
1" x 1/2"
25.4mm x 12.7mm
16,17,18,19,20,21
1-1/2" x 1-1/2"
38mm x 38mm
14,15,16,17,18,19
1" x 2"
25.4mm x 50.8mm
14,15,16
2" x 2"
50.8mm x 50.8mm
12,13,14,15,16
Technical Note: 1.Standard roll length: 30m,100m;width: 0.5m to 2.5m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
PVC Coated Welded Mesh
Opening (In inch)
In metric unit(mm)
Wire Diameter(BWG)
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21
3/4" x 3/4"
19mm x 19mm
16,17,18,19,20,21
1" x 1"
25.4mm x 25.4mm
15,16,17,18,19,20
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
Packaging&shipping
1.Waterproof. 2.plastic film. 3.Waterproof+plastic film. 4.Waterproof+pallet.
